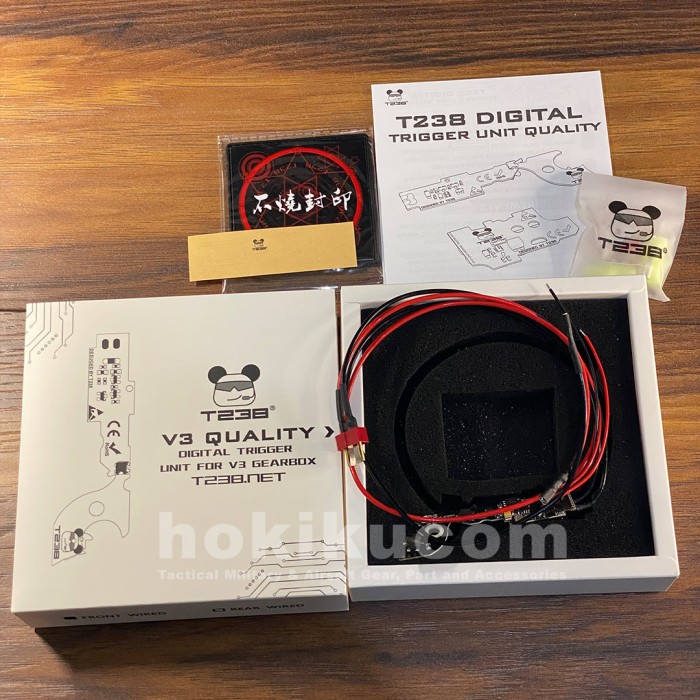

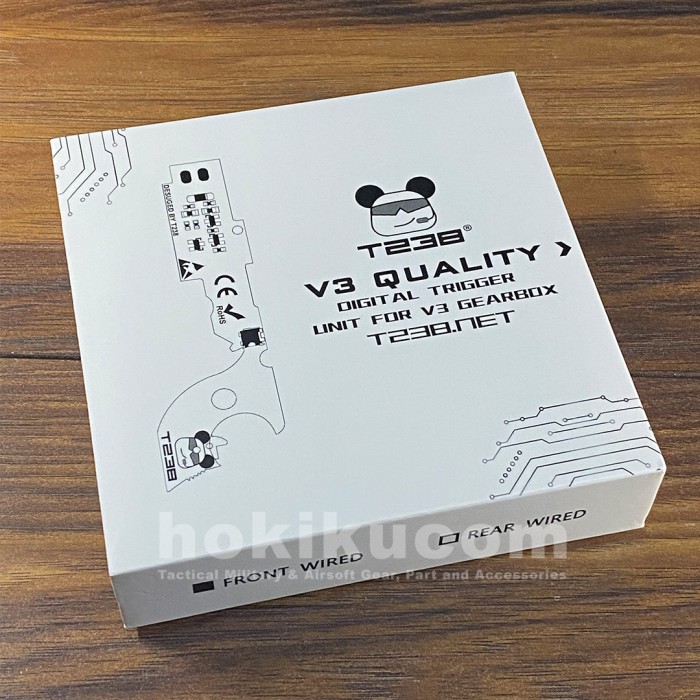

Mosfet T238 DTU V3 QUALITY ( V1.42 ) Micro Mechanical Version for AEG V3 gearbox

DISCLAIMER PEMBELIAN PART DAN ACCESSORIES :
Harap diperhatikan Pemasangan part dan accessories mungkin membutuhkan keahlian khusus,
sehingga tidak ada jaminan garansi pemasangan, cocok/tidak nya, bisa/tidak nya dipasang di unit anda,
sekalipun tertulis di judul/deskripsi/label dll.
harap konsultasikan dulu ke teknisi/forum yang anda percaya,
Untuk menjaga kualitas produk tetap dalam kondisi baru dan tidak bekas dipasang2/dicoba,
mohon maaf tidak menerima retur dengan komplain tidak bisa dipasang/tidak cocok/salah beli dll.
Retur/komplain hanya dapat diterima jika barang tidak sesuai foto.
Demikian harap maklum dan terima kasih pengertiannya.

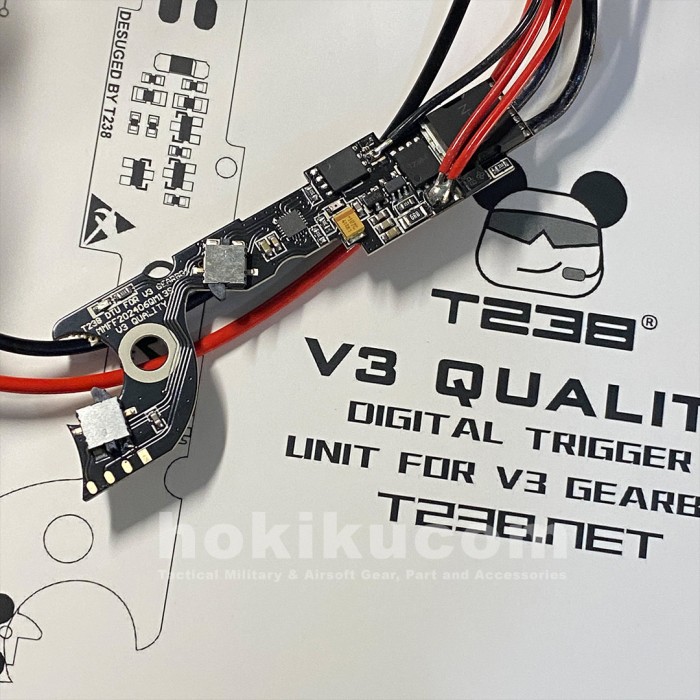

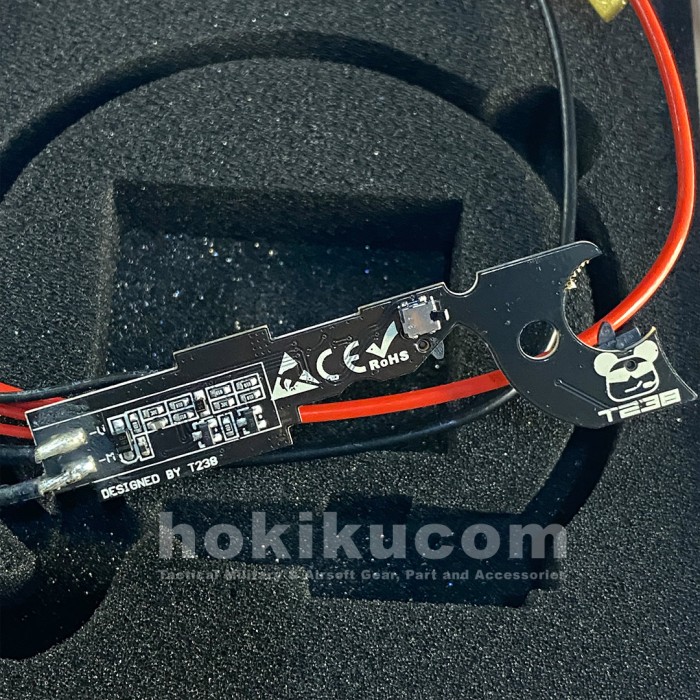

The ETU V1.42 for V3 gearbox is a multifunctional MOSFET switch. Specifically designed for AIRSOFT, Gel Ball Blaster, other V3 gearboxes with semi-automatic and fully automatic functions.

1.Supports up to 14.8V battery
2.Multiple shooting mode
The system includes multiple shooting mode, these modes can be selected by fire select switch
3.Auto-loading function is designed for gel ball blaster magazines with motor inside, when changing the magazine, the magazine motor will run automatically for 0.5 second.
4.PRE-COCKING.The default postition of the piston is adjustable is semi-auto model.Per-cocking function can be implementing,zero trigger delay.
5.ETU overheat protection.When the ETU is overheated,after the trigger is pulled,the motor will give a beep prompt until it is automatically restarted after cooling.
6.Low battery voltage protection：the default setting is 7.4V battery.Change the battery when hearing‘beep，beep，beep，beep’4 times low voltage warning sound.
7.Active braking.The energy that support the active brake function comes from the inertia of motor, stop the piston without delay. The effect of active brake is significant on high torque motor.
8.Fast speed of respond.This module is powered by small current，the current flow through the MOSFET directly to the motor，provide higher current to increase the rate of fire and speed of respond.
9.Block-up protection.When gearboxBlock-up occurs, the system stops working and emits an elongated ‘beep’ sound. Please check the wave box immediately by power off.
10.Gearbox protection.The active brake prevents the over-spin of gears,this solve the issue that single shot changes to multiple shot under high voltage.meanwhile,the spring is fully released in semi-auto model and parts in the gearbox are not under strain,increase the life cycle of your gearbox.
